Leading Wholesaler, Distributor, Trader and Importer of Automatic THERMAL LAMINATION MACHINE, Semi-Automatic THERMAL LAMINATION MACHINE and Tabel-Top THERMAL LAMINATION MACHINE from Bilaspur.
Business Type | Supplier, Trader, Distributor |
Model Number | RD400 |
Type of Rollers | Steel Rollers |
Lamination Speed | 5 Meter / Minute |
Input Paper Size | 148*210mm. (Minimum) to 330*480mm. (Maximum) |
Suitable Paper | 157-400 gsm / 0.12 - 0.35mm. |
Paper Feeding Method | Feeder Roller with Air Suction |
Feed Tray Capacity | 500 sheets (200 GSM) |
Pressure Mode | Sprint |
Briding Accuracy | +- 0.5mm. |
Bridging way | Digital Automatic |
Breaking System | Motor Control |
Stacker | Simple Delivery Tray |
Heating Mode | Electric Heating |
Power Consumption | 1200 W |
Power Supply | AC 220V |
Weight of Bottom Cabinet | 25 Kg. |
Machine Packing Dimension | 976*695*958mm. |
Machine Size | 1320*575*1757mm. |
Packing Size of Bottom Cabinet | 652*604*236mm. |
Product Code | RD400 |
Port | Pendra Road, BILASPUR |
Payment Terms | T/T |
Delivery Time | One Week |
Packaging Details | Packaged in International Standard Packaging |
Preferred Buyer From
Location | Anywhere in India |

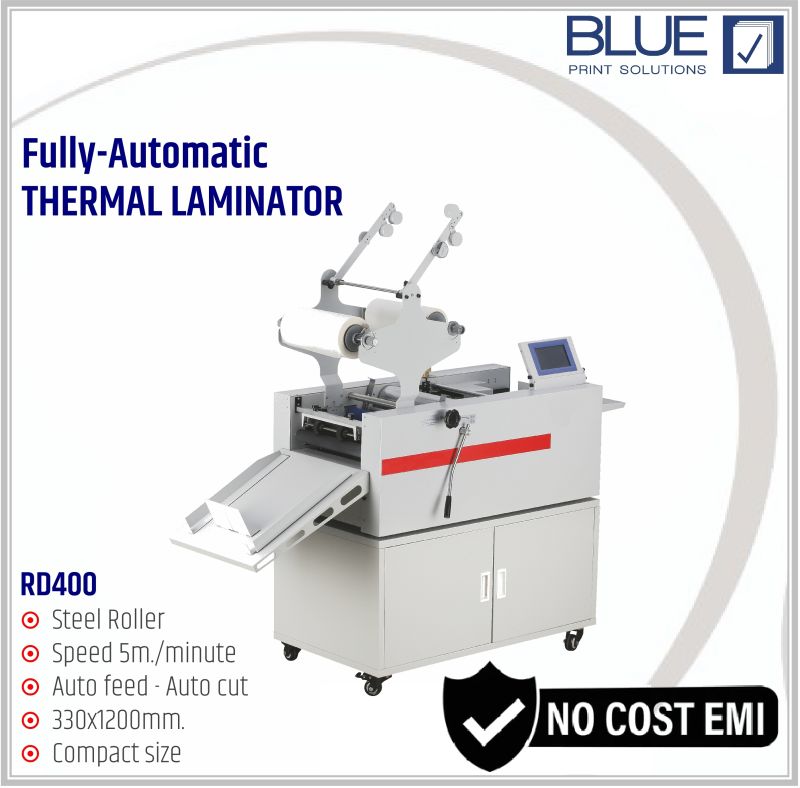

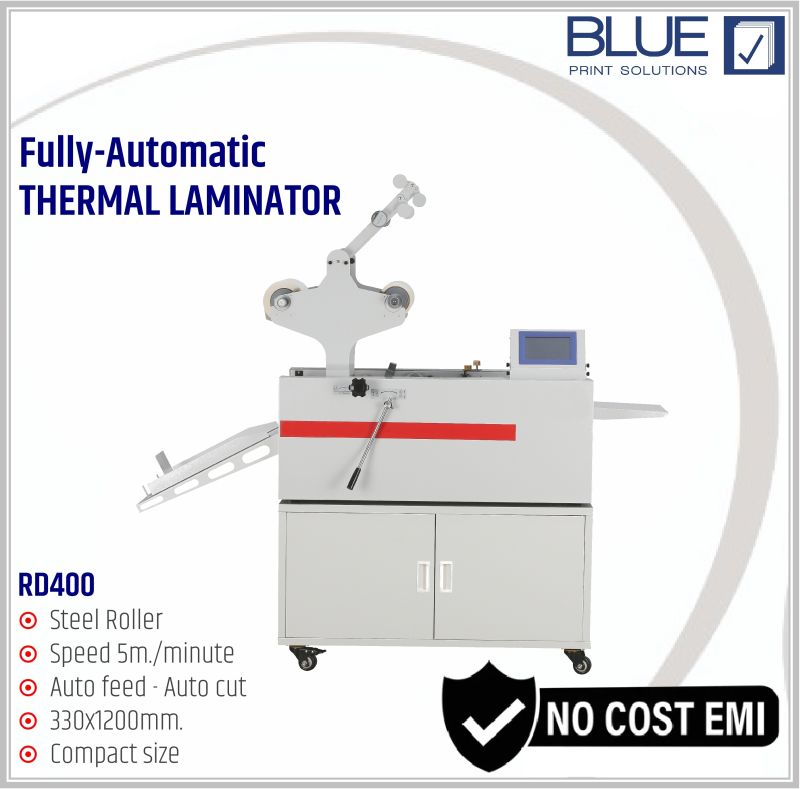

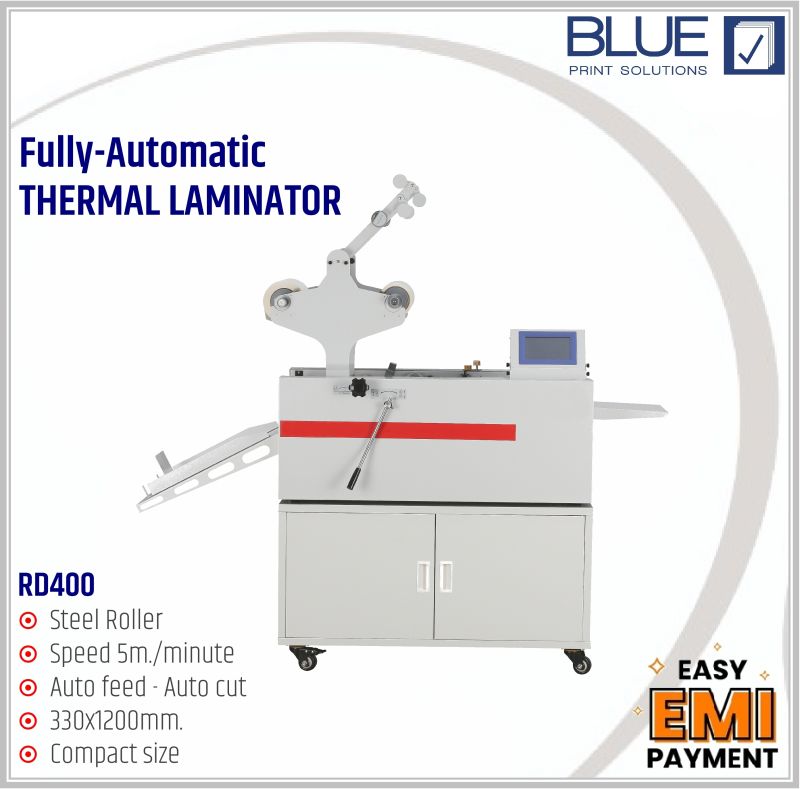

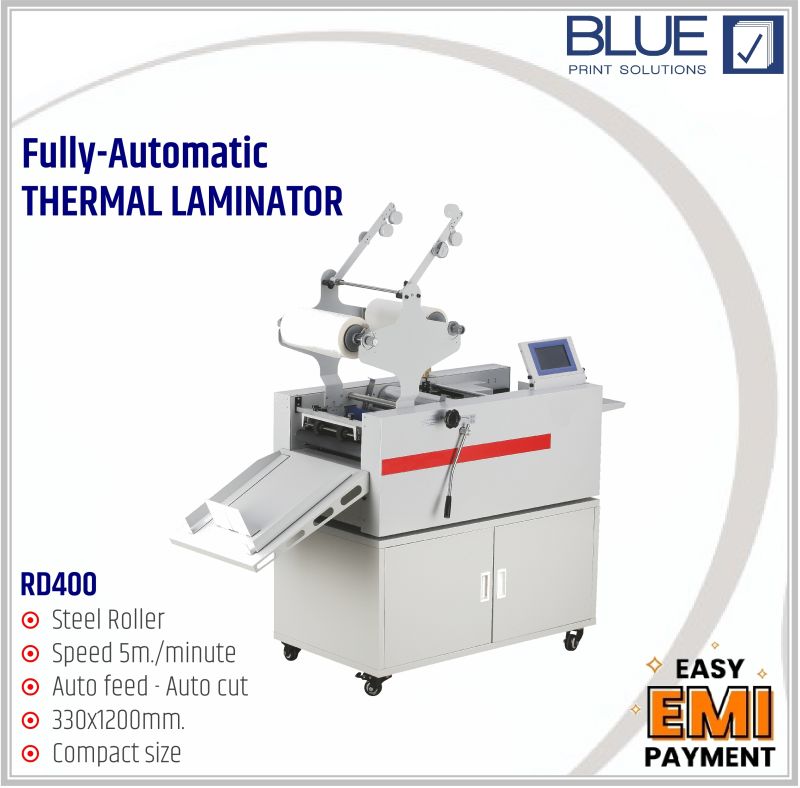

Rongda RD400 Intelligent Automatic Laminator a High-precision Stepping Drive Machine which comes with Large 7 Inch Colour Touch Screen, One Key Start, Automatic Paper Feeding, Bridging, Laminating, Breaking. This machine using a new heating way, solve the whole plate white spots, bubbles which support minimum 148x210mm. and maximum 340x1200mm. size of paper and have double film cylinder design, easy to change film, double film cuttig knife design makes breaking easier, accurate anti double sheet adjustment system according to the paper reset to the corresponding scale.
Business Type | Supplier, Trader, Distributor |
Model Number | VC370 |
Speed | 3 Meter / Minute (1-9 speed option) |
Heating Roller | Steel Roller |
Max Film Width | 340mm. |
Roll Diameter | 79mm. |
Film Thickness | 80g to 350g |
Paper Feed Mode | Semi automatic (Conveyor Belt System) |
Work Mode | Single & Double, Hot & Cold Lamination |
Membrance Core Diameter | 1-3 Inch |
Heating Time | 5-10m. |
Control Mode | Key Temperature Control |
Display Mode | Digital Display |
Pressurization Mode | Sprint |
Trimming Function | Automatic Trimming |
Dashed Line Function | Perforating Knife |
Crimp Prevention Function | Gravity Stretch Anti-crimp design |
Humidity | 20% to 70% |
Power Consumption | 1700 W |
Voltage | 220 V / 50/60 HZ |
Electric Current | 5.5 AMP |
Net Weight | 45 Kg. |
Gross Weight | 69 Kg |
Package Dimension | 650*600*670mm. |
Product Code | VC370 |
Port | Pendra Road, BILASPUR |
Payment Terms | T/T |
Delivery Time | One Week |
Packaging Details | Packed in International Standard Packaging |
Preferred Buyer From
Location | Anywhere in India |

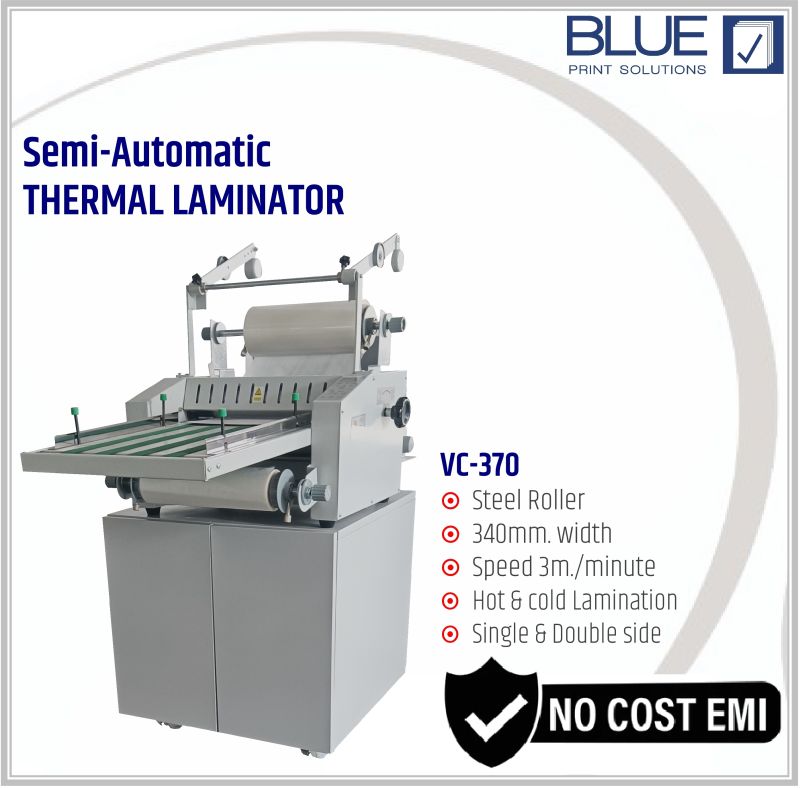

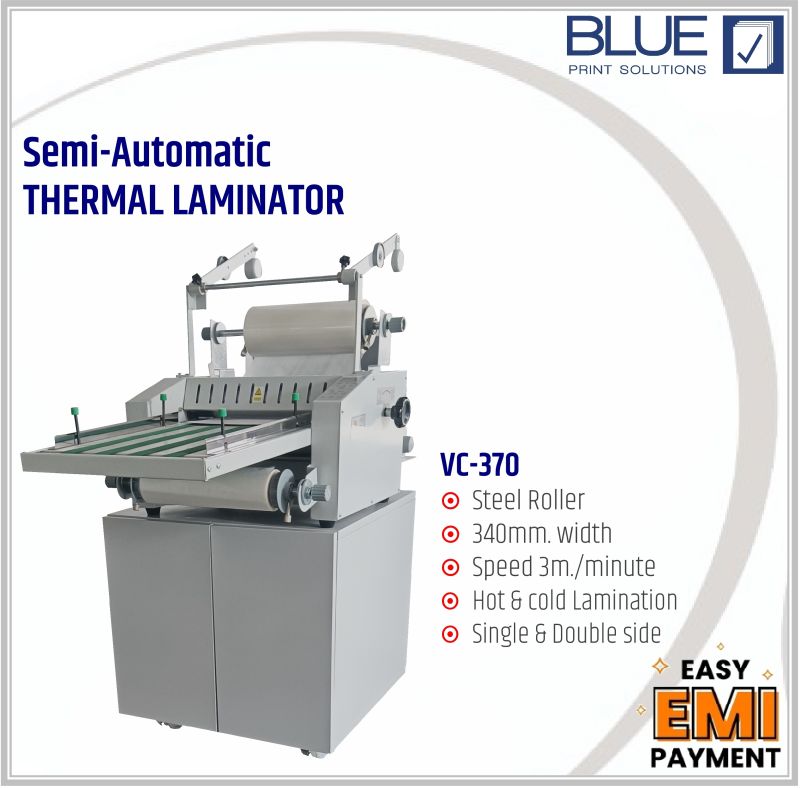

VC370 an intelligent laminating machine in which belt into the paper, automatic winding, anti curling function. Temperature setting, Double side laminating, Single side laminating, Cold laminating, Speed settings with steel rollers of 79mm. diameter, good thermal conductivity, rapid temperature rise, film delicate high temperature resistance and durable. It have gravity tensile anti coiling design, effectively solve the problem of different thickness of single surface coating curling.
Business Type | Supplier, Trader, Distributor |
Model Number | V350 |
Lamination Speed | 1.1 Meter/Minute |
Maximum Film Width | 340mm. |
Maximum Lamination Temp. | 180 Celsius |
Membrance Core Size | 1 Inch |
Paper Feed Mode | Manual |
Specialities | Hot & Cold, Single & Both side Lamination |
Film Thickness | 80g to 350g |
Control Mode | Key Temperature Control |
Display Mode | Digital Display |
Power Consumption | 700 W |
Power Source | 220V / 50/60 HZ |
Product Size | 530*210*220mm. |
Weight | NW 7 KG / GW 8 KG |
Product Code | V350 |
Port | Pendra Road, BILASPUR |
Payment Terms | T/T |
Delivery Time | One Week |
Packaging Details | Packed in International Standard Packaging |
Preferred Buyer From
Location | Anywhere in India |

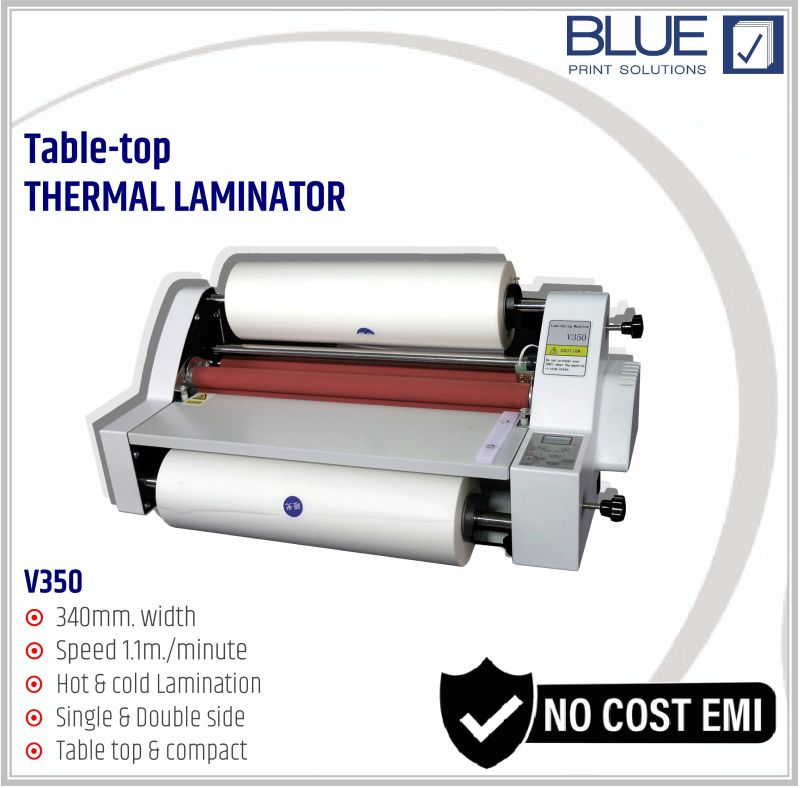

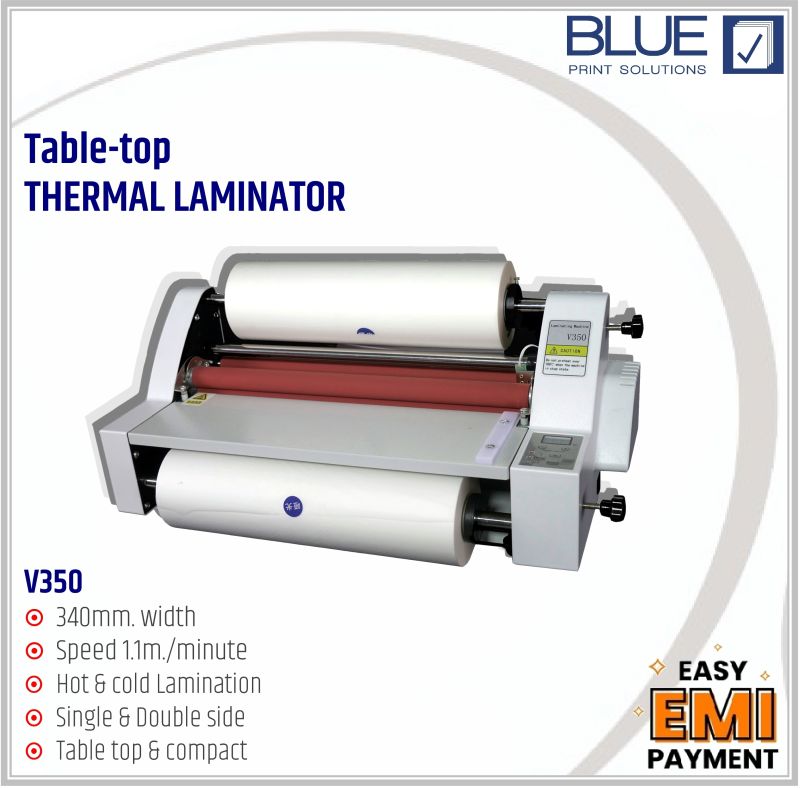

Introducing Best in Class & Cost-effective Roll to Roll Hot & Cold Lamination Machine which is easy to operate and extremely quite with accurate temperature control which assuring high quality laminating.
It's able to be on stand-by are always ready to use. An ideal machine for various type of laminating needs This machine supports Hot & Cold Film Laminating and Single & Double Film Laminating.
